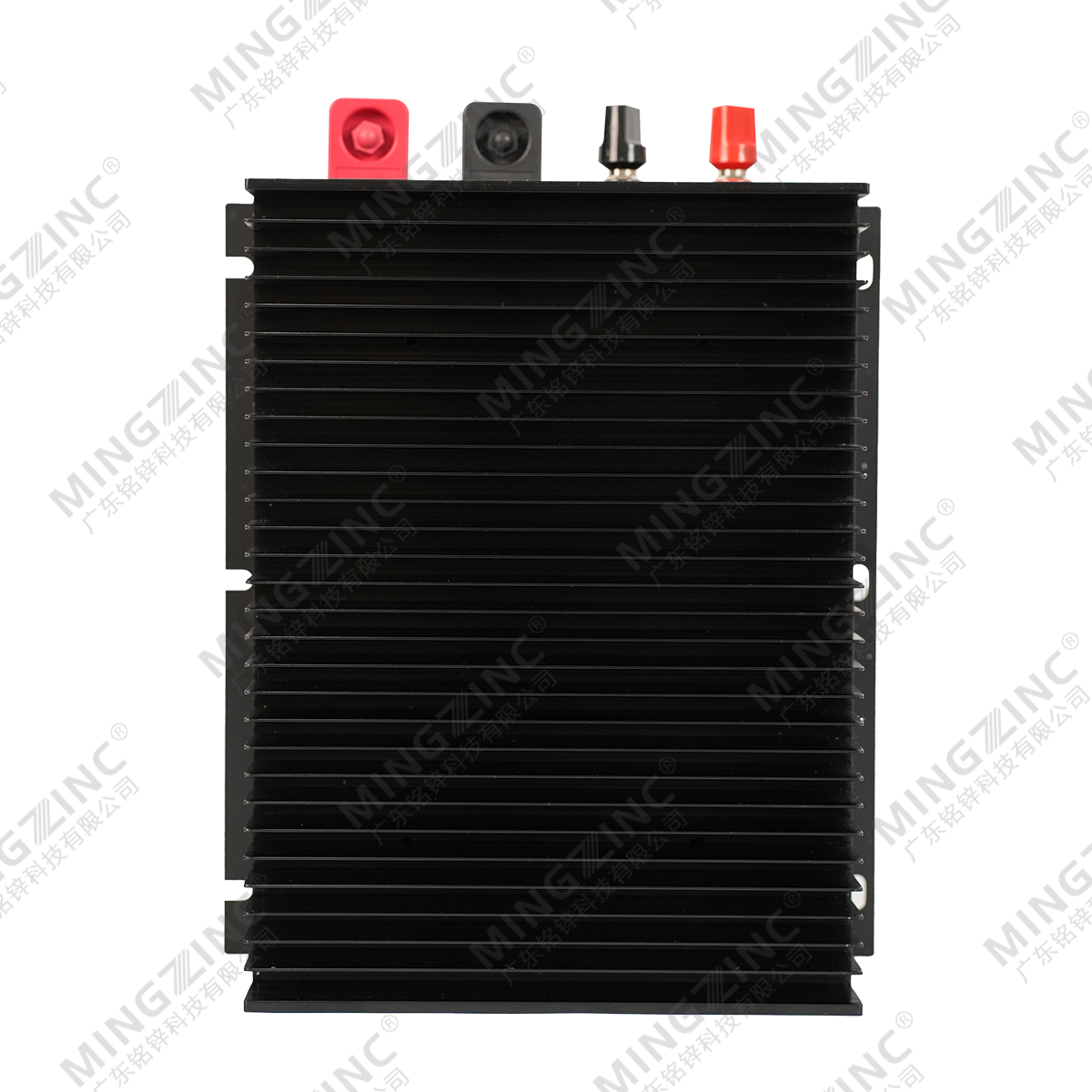

MDK1200-2000W-301-261-124

特性:
◆ 高低电压输入可选
◆大功率，自然冷却
◆ 效率高
◆ 外形美观，散热效果好
◆ 高可靠性，长寿命设计
◆ CAN通讯(可选)
条件：除特殊指定外，所有参数测试条件为：室温25℃,标称输入电压，纯阻性标称负载。

产品详情

特性:

◆ 高低电压输入可选

◆ 大功率，自然冷却

◆ 效率高

◆ 外形美观，散热效果好

◆ 高可靠性，长寿命设计

◆ CAN通讯(可选)

条件：除特殊指定外，所有参数测试条件为：室温25℃，标称输入电压，纯阻性标称负载。

输入特性：

Rated value(VDC)	Voltage Range(VDC)
26VDC	20-32VDC
48VDC	36-60VDC
72VDC	45-95VDC
96VDC	80-140VDC
144VDC	100-170VDC
210VDC	160-260VDC
360VDC	280-500VDC
560VDC	350-750VDC
580VDC	400-850VDC
850VDC	600-1000VDC

输出特性：

功率Power	1200-2000W
输出电流Output Current	5-100A
输出电压Output Voltage	12-1110A
输出电压调整范围 Output voltage Range	±10%
电压精度Voltage Set-point Accuracy	±2%
电压调整率（主路）Line Regulation<main>	±0.5%
负载调整率（主路）Load Regulation<main>	±0.5%
电流限制点Output Current Limiting	120%(Typ)

一般特性：

绝缘电阻

Isolation resistance

50MΩ

保护特性：

1	输入欠压保护Input under voltage protection
2	输入过压保护Input over voltage protection
3	过温保护 Over temperature protection
4	输出过流保护Output over current protection
5	输出短路保护Output short circuit protection

隔离电压值Isolation Voltage

输入-输出Input-Output	>3000VDC
输入-外壳Input-Case	>1000VDC
输出-外壳Output-Case	>500VDC

环境特性Environmental Characteristics

输入-输出Input-Output	>3000VDC
输入-外壳Input-Case	>1000VDC
输出-外壳Output-Case	>500VDC

型号：

单路Single Channels Output

型号Models	输入电压(VDC) Input voltage(VDC)	输入电压范围（VDC） Input voltage Range(VDC)	输出电压（VDC) Output voltage(VDC)	输出电流(A) Output current(A)	纹波PK-PK（MV) Ripple and noise（MV)	效率(Typ) Efficiency (Typ)
MDK1500-26S27.5	26VDC	20-32VDC	27.5	54.5	300	92%
MDK1500-26S48	26VDC	20-32VDC	48	31.2	300	92%
MDK1500-48S27.5	48VDC	36-60VDC	27.5	54.5	300	92%
MDK1500-48S48	48VDC	36-60VDC	48	31.2	300	92%
MDK1500-72S27.5	72VDC	45-95VDC	27.5	54.5	300	92%
MDK1500-72S48	72VDC	45-95VDC	48	31.2	300	92%
MDK1500-96S27.5	96VDC	80-140VDC	27.5	54.5	300	92%
MDK1500-96S48	96VDC	80-140VDC	48	31.2	300	92%
MDK1500-144S27.5	144VDC	100-170VDC	27.5	54.5	300	92%
MDK1500-144S48	144VDC	100-170VDC	48	31.2	300	92%
MDK1500-210S27.5	210VDC	160-260VDC	27.5	54.5	300	92%
MDK1500-210S48	210VDC	160-260VDC	48	31.2	300	92%
MDK2000-360S24	360VDC	280-500VDC	24	83.3	300	92%
MDK2000-360S48	360VDC	280-500VDC	48	41.6	300	93%
MDK2000-360S58	360VDC	280-500VDC	58	51.7	500	93%
MDK2000-360S72	360VDC	280-500VDC	72	34.4	500	95%
MDK2000-360S80	360VDC	280-500VDC	80	25	500	95%
MDK2000-360S120	360VDC	280-500VDC	120	16.6	500	95%
MDK2000-360S200	360VDC	280-500VDC	200	10	800	95%
MDK2000-360S300	360VDC	280-500VDC	300	6.6	800	95%
MDK2000-360S400	360VDC	280-500VDC	400	5.0	800	95%
MDK2000-560S24	560VDC	350-750VDC	24	83.3	300	92%
MDK2000-560S48	560VDC	350-750VDC	48	41.6	300	93%
MDK2000-560S58	560VDC	350-750VDC	58	51.7	500	93%
MDK2000-560S72	560VDC	350-750VDC	72	34.4	500	95%
MDK2000-560S80	560VDC	350-750VDC	80	25	500	95%
MDK2000-560S120	560VDC	350-750VDC	120	16.6	500	95%
MDK2000-560S200	560VDC	350-750VDC	200	10	800	95%
MDK2000-560S300	560VDC	350-750VDC	300	6.6	800	95%
MDK2000-560S400	560VDC	350-750VDC	400	5.0	800	95%
MDK2000-580S24	580VDC	400-850VDC	24	83.3	300	92%
MDK2000-580S48	580VDC	400-850VDC	48	41.6	300	93%
MDK2000-580S58	580VDC	400-850VDC	58	51.7	500	93%
MDK2000-580S72	580VDC	400-850VDC	72	34.4	500	95%
MDK2000-580S80	580VDC	400-850VDC	80	25	500	95%
MDK2000-580S120	580VDC	400-850VDC	120	16.6	500	95%
MDK2000-580S200	580VDC	400-850VDC	200	10	800	95%
MDK2000-580S300	580VDC	400-850VDC	300	6.6	800	95%
MDK2000-580S400	580VDC	400-850VDC	400	5.0	800	95%
MDK2000-850S24	850VDC	600-1000VDC	24	83.3	300	92%
MDK2000-850S48	850VDC	600-1000VDC	48	41.6	300	93%
MDK2000-850S58	850VDC	600-1000VDC	58	51.7	500	93%
MDK2000-850S72	850VDC	600-1000VDC	72	34.4	500	95%
MDK2000-850S80	850VDC	600-1000VDC	80	25	500	95%
MDK2000-850S120	850VDC	600-1000VDC	120	16.6	500	95%
MDK2000-850S200	850VDC	600-1000VDC	200	10	800	95%
MDK2000-850S300	850VDC	600-1000VDC	300	6.6	800	95%
MDK2000-850S400	850VDC	600-1000VDC	400	5.0	800	95%

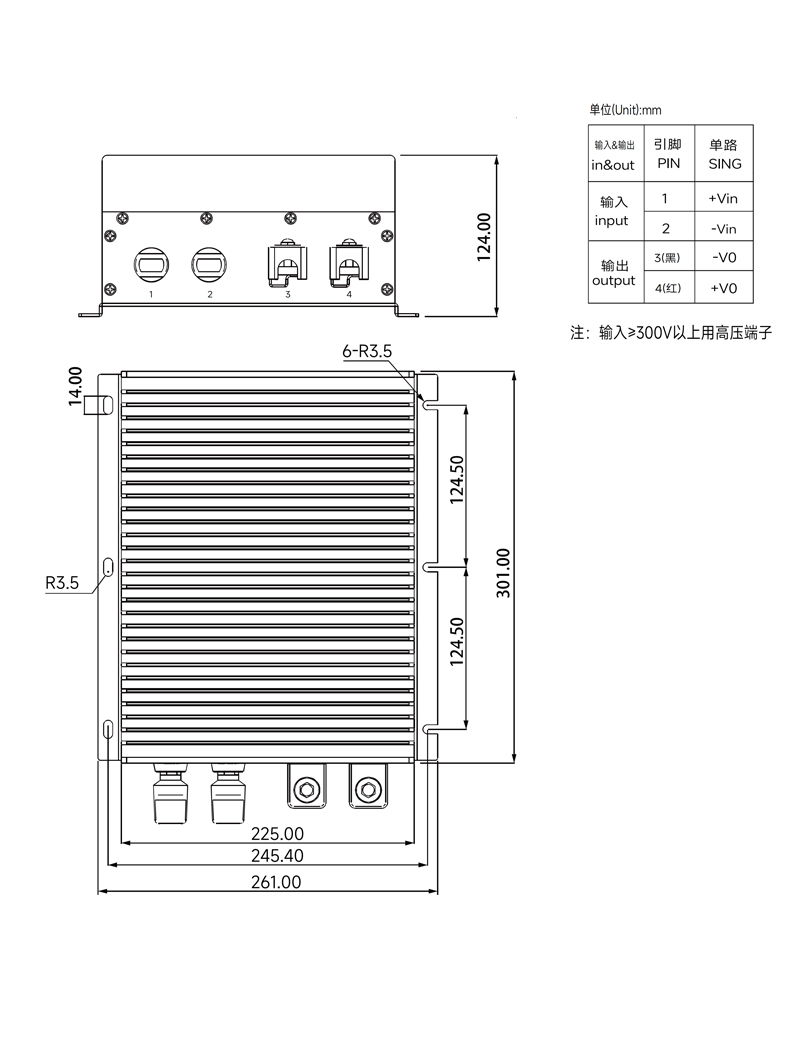

外型尺寸与引脚定义：
