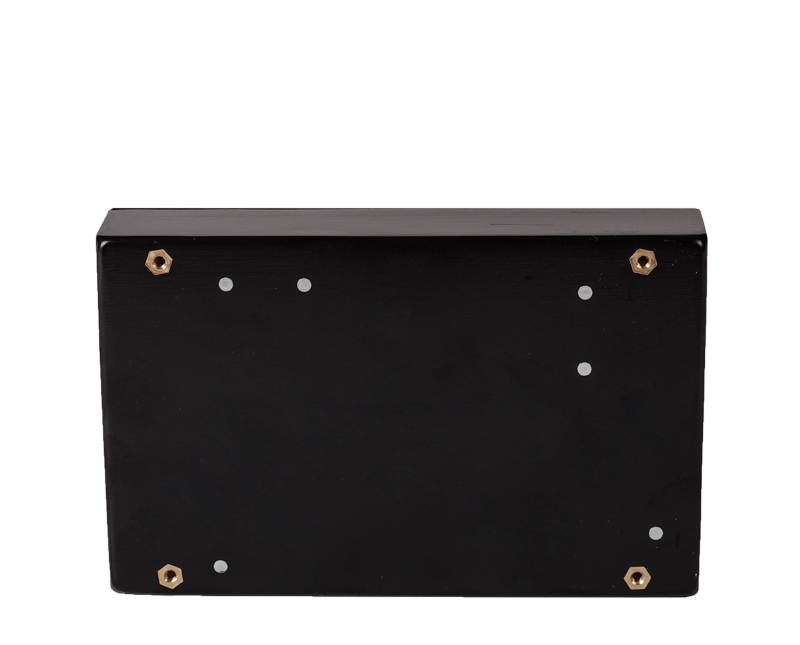

XDB100-150W Series DC DC Converter-IDEALPLUSING
I. MODELS LIST
Single Channels Oupu
Models | Input voltage (Vdc) | Input voltage (Vdc) | Output voltage | Output current(A) | Ripple and noise(mv) | Efficiency (Typ) |
XDB100-12S05 | 12 | 9-18 | 05 | 20 | 50 | 82% |
XDB100-12S12 | 12 | 9-18 | 12 | 8.33 | 120 | 82% |
XDB150-12S13.8 | 12 | 9-18 | 13.8 | 10.87 | 120 | 82% |
XDB100-24S05 | 24 | 18-36 | 05 | 20 | 50 | 85% |

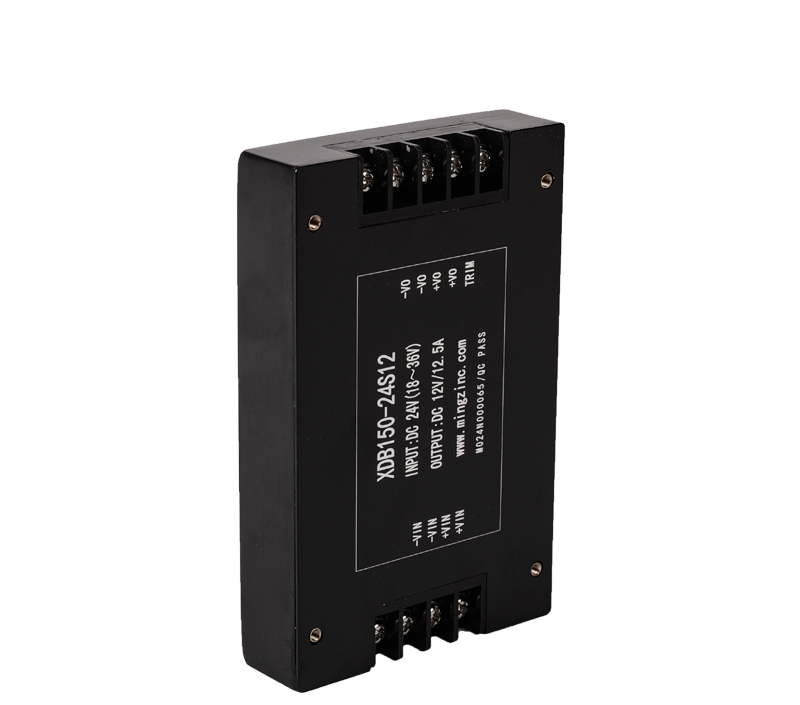

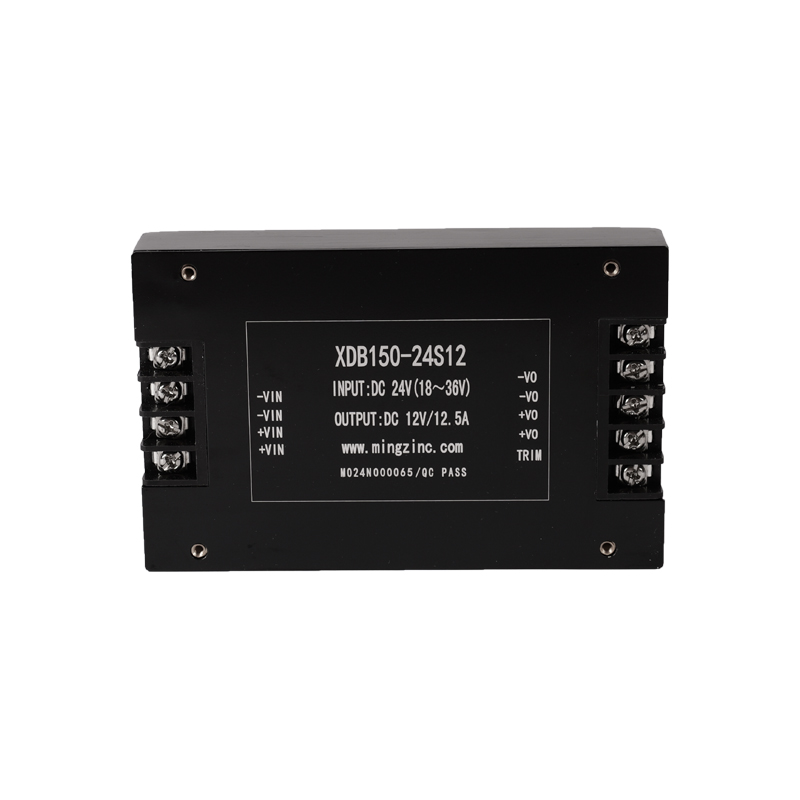

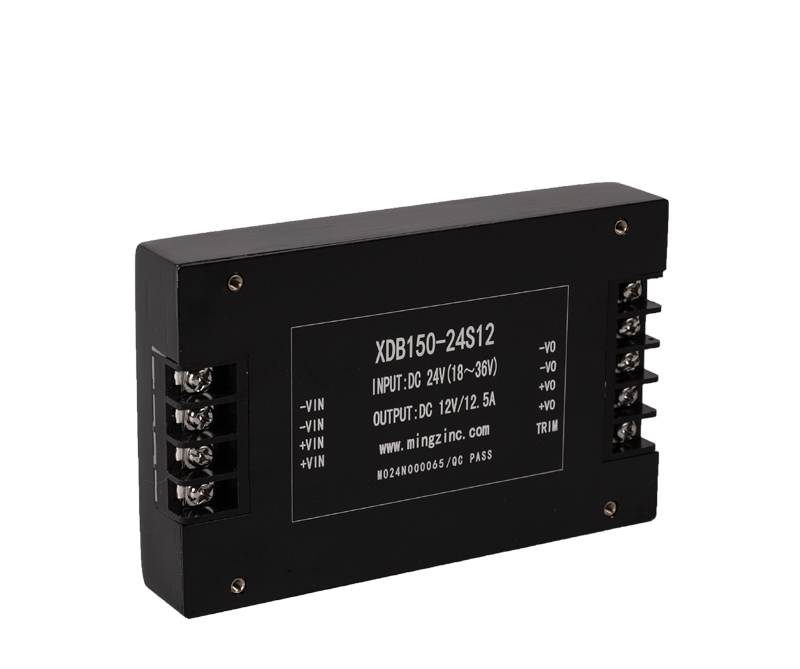

XDB150-24S12 | 24 | 8-36 | 12 | 12.5 | 120 | 82% |
XDB150-24S15 | 24 | 8-36 | 15 | 10 | 150 | 83% |
XDB100-48S05 | 48 | 36-72 | 05 | 20 | 50 | 85% |
XDB150-48S12 | 48 | 36-72 | 12 | 12.5 | 120 | 86% |
XDB150-110S24 | 110 | 36-72 | 24 | 6.25 | 200 | 85% |
Dual Channels Ouput
Models | Input voltage (Vdc) | Input voltage (Vdc) | Output voltage (Vdc) | Output current(A) | Ripple and noise(mv) | Efficiency (Typ) |
XDB50-12D05&05 | 12 | 9-18 | 05&05 | 05&05 | 50&50 | 82% |
XDB100-12D05&12 | 12 | 9-18 | 05&12 | 15&2.1 | 50&120 | 83% |
XDB75-24D12&12 | 24 | 18-36 | 12&12 | 3.13&3.13 | 120&120 | 83% |
XDB150-24D15&15 | 24 | 18-36 | 15&15 | 8&2 | 150&150 | 87% |
XDB132-24D24&12 | 24 | 18-36 | 24&12 | 4&3 | 200&120 | 85% |
XDB100-48D05&12 | 48 | 36-72 | 05&12 | 15&2 | 50&120 | 88% |
XDB120-48D12&24 | 48 | 36-72 | 12&24 | 8&1 | 120&120 | 85% |
II. FEATURES
1 | Fast dynamic response |
2 | Good heat dissipation with beautiful appearance |
3 | High efficiency |
4 | Natural cooling Additional radiator available |
5 | High and low voltage inputs selectable |
6 | Attractive outline design |
7 | Can be used in the solar photovoltaic industry |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
Rated value(VDC) | Voltage Range(VDC) |
12VDC | 9-18VDC |
24VDC | 18-36 VDC |
48VDC | 36-72VDC |
110VDC | 66-154VDC |
备注：反接保护，应用时外接熔丝 | |
IV. OU
Parameter | Value |
Power | 100-150W |
Output Current | 2-30A |
Output Voltage | 5-48VDC |
输出电压稳定精度 | ±0.2% |
电压调整率（主路） | ±0.5% |
负载调整率 | ±0.4% |
温度变化率 | ±0.01%/℃ |
电流限制点 | 120%（Typ) |
响应速度 | 400μs |
TPUT CHARACTERISTIC
V. PROTECTIVE CHARACTERISTIC
1 | Input under voltage protection |
2 | Input over voltage protection |
3 | Over temperature protection |
4 | Output over current protection |
5 | Output short circuit protection |
GENERAL CHARACTERISTIC
Parameter | Value |
Switching Frequency | 160-200KHz |
lsolation Resitstance | 200MΩ |
MTBF | >500000 h |
lsolation Voltage
Parameter | Value |
Input-Output | >1500VDC |
Input-Case | >1050VDC |
Output-Case | >500VDC |
Environmental Characteristics
Parameter | Value | |
Case Temperature | Industry | -25 – +85℃ |
Military l | -40 – +85℃ | |
Military II | -55 – +85℃ | |
Storage Temperature | Industry | -45 – +105℃ |
Military l | -55 – +105℃ | |
VI. MECHANICAL DRAWING AND PIN DEFINITION
