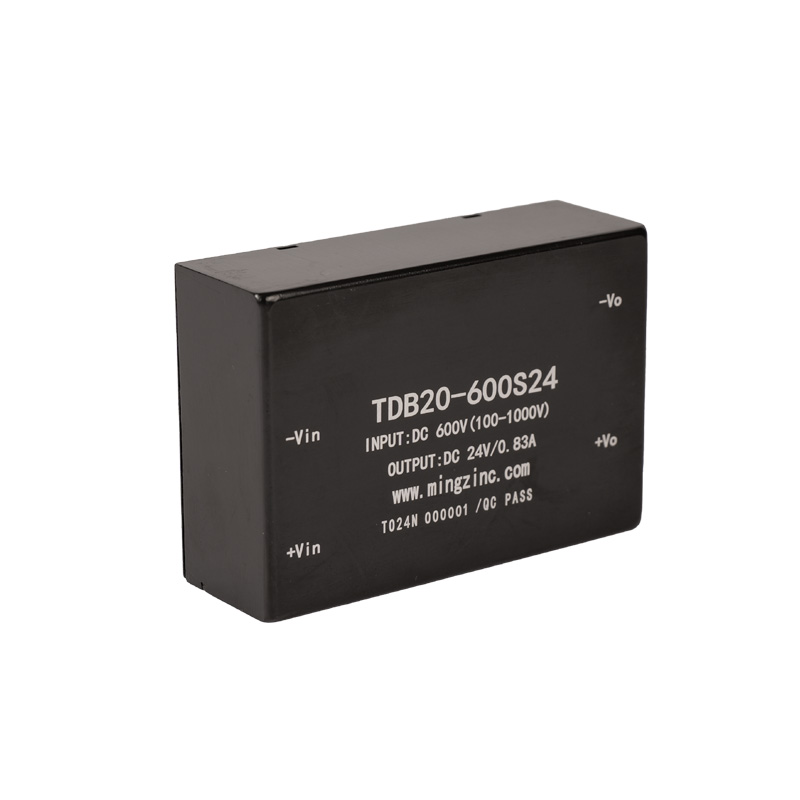

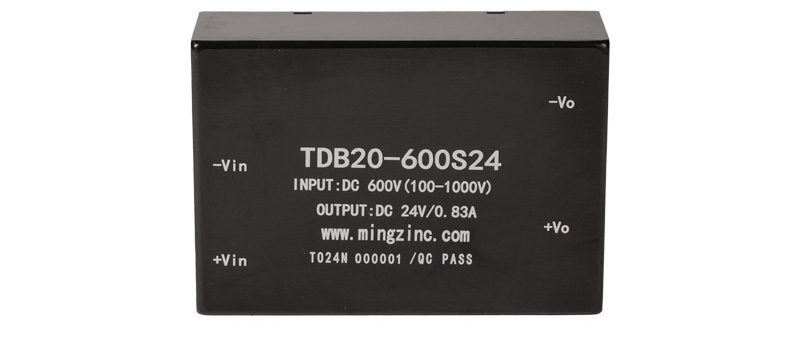

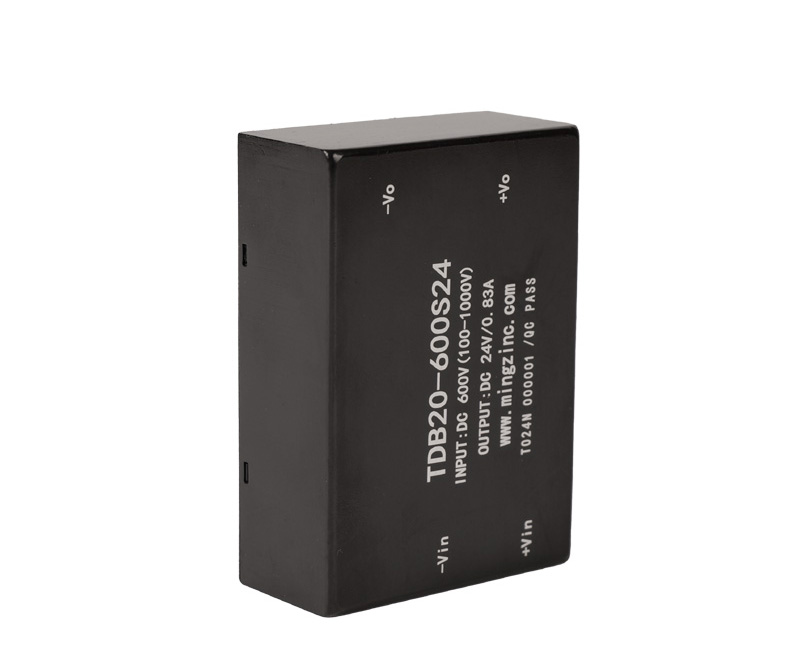

TDB 5-25W系列 DC/DC隔离电源模块
TDB5-25W Series DC DC Isolation Converter - MINGZINC
I.型号列表MODELS LIST
单路输出Single Channels Ouput
型号Models | 输入电压 Input voltage (VDC) |
输出电压（范围） Input voltage （Range) | 输出电压Output voltage (VDC) | 输出电流Output current(A) | 纹波 Pipple and noise(mv) | 效率 Efficiency (Typ) |
TDB5-600S05 | 600 | 100-1000 | 05 | 1 | 50 | 70% |
TDB5-600S12 | 600 | 100-1000 | 12 | 0.42 | 50 | 75% |
TDB5-600S24 | 600 | 100-1000 | 24 | 0.23 | 50 | 78% |
TDB10-600S05 | 600 | 100-1000 | 05 | 2 | 50 | 70% |
TDB10-600S12 | 600 | 100-1000 | 12 | 0.9 | 50 | 75% |
TDB10-600S24 | 600 | 100-1000 | 24 | 0.45 | 50 | 78% |
TDB15-600S05 | 600 | 100-1000 | 05 | 3 | 50 | 70% |
TDB15-600S12 | 600 | 100-1000 | 12 | 1.25 | 50 | 75% |
TDB15-600S24 | 600 | 100-1000 | 24 | 0.625 | 50 | 78% |
TDB20-600S05 | 600 | 100-1000 | 05 | 4 | 50 | 70% |
TDB20-600S12 | 600 | 100-1000 | 12 | 1.66 | 50 | 75% |
TDB20-600S24 | 600 | 100-1000 | 24 | 0.83 | 50 | 78% |
TDB25-600S05 | 600 | 100-1000 | 05 | 5.0 | 50 | 70% |
TDB25-600S12 | 600 | 100-1000 | 12 | 2.0 | 50 | 75% |
TDB25-600S24 | 600 | 100-1000 | 24 | 1.0 | 50 | 78% |
II. 特性FEATURES
1 | 宽电压输入范围100-1000VDC Wide voltage input range 100-1000VDC |
2 | 高可靠性 长寿命设计High reliability, long life design |
3 | 高效率high efficiency |
4 | 工业级技术产品设计 Industrial-grade technical product design |
5 | 优异的输出短路，过温保护功能Output short-circuit, over-temperature protection |
条件：除特殊指定外，所有参数测试条件为：室温25℃.标称输入电压，纯阻性标称负载。
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
输入特性INPUT CHARACTERISTIC
额定值Rated value(VDC) | 电压范围Voltage Range(VDC) |
600VDC | 100-1000VDC |
IV. 输出特性OUTPUT CHARACTERISTIC
功率Power | 5-25W |
输出电流Output Current | 0-5A |
输出电压Output Voltage | 5-24VDC |
电压精度 | ±1% |
源效应 | ±0.5% （typ) |
负载调整率（10%~****） | ±2% |
*小负载 | 0% |
输出纹波+噪声（峰-峰值） | 100mv(typ)(20MHz Bandwidth) |
输出过流保护 | ≥1.1倍 |
备注：纹波与噪声用平行线测试法测试。 | |
V. 保护特性PROTECTIVE CHARACTERISTIC
1 | 输入过压保护Input under voltage protection |
2 | 输出过压保护Input over voltage protection |
3 | 过温保护Over temperature protection |
4 | 输出过流保护 Output over current protection |
5 | 输出短路保护Output short circuit protection |
一般特性GENERAL CHARACTERISTIC
工作频率 Switching Frequency | 65-100KHz |
绝缘电阻 Isolation resistance | 200MΩ |
MTBF | >500000 h |
隔离电压值Isolation Voltage
输入-输出Input-Output | >2000VDC |
输入-外壳Input-Case | >2000VDC |
输出-外壳Output-Case | >500VDC |
环境特性Environmental Characteristics
工作壳温 Case Temperature | 工业品Industry | -25 – +85℃ |
军I Military l | -40 – +85℃ | |
军II Military II | -55 – +85℃ | |
存储温度 Storage Temperature | 工业品Industry | -45 – +105℃ |
军品Military l | -55 – +105℃ |

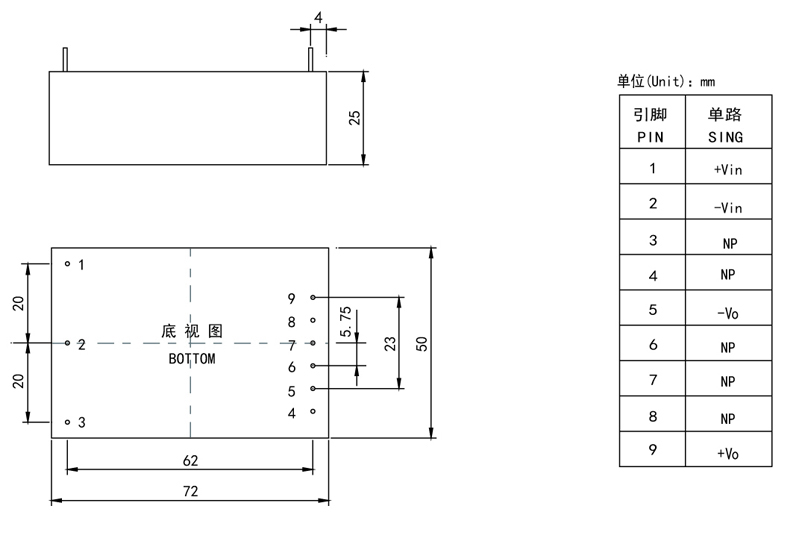

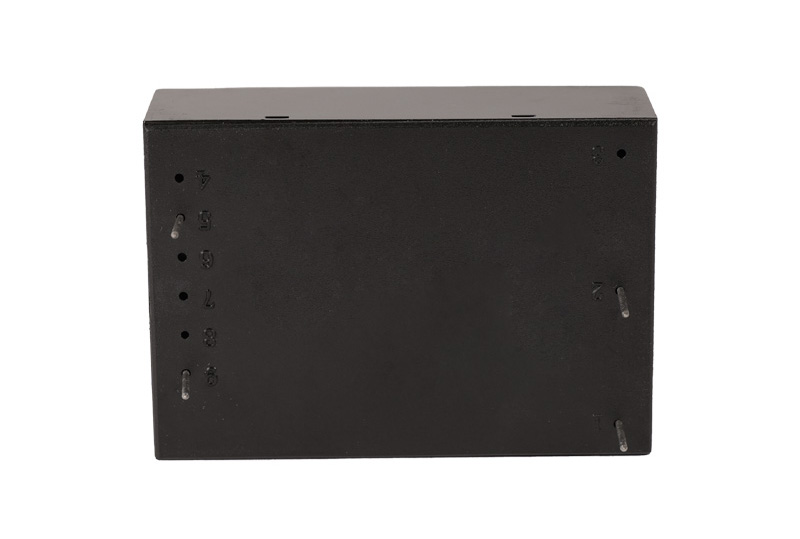

外型尺寸及引脚定义MECHANICAL DRAWING AND PIN DEFINITION
