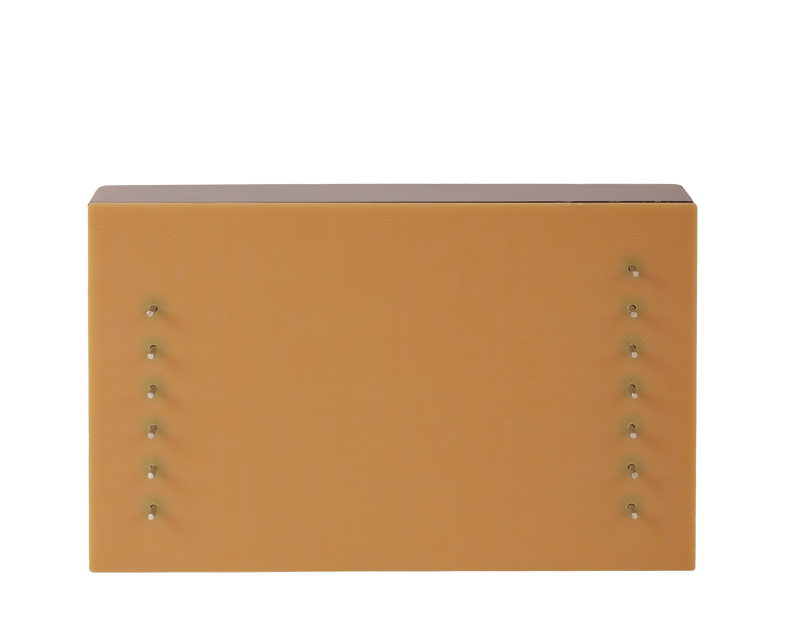

TDB150-400W 系列DC/DC隔离电源模块
TDB 150-400W Series DC DC Isolation Converter - MINGZINC
I.型号列表 MODELS LIST
单路输出Single Channels Output
型号Models | 输入电压 Input voltage (VDC) | 输出电压（范围） Input voltage （Range)
| 输出电压Output voltage (VDC) | 输出电流Output current(A) | 纹波 Pipple and noise(mv) | 效率 Efficiency (Typ) |
TDB150-110S05 | 110 | 70-140 | 05 | 30 | 50 | 82% |
TDB240-110S12 | 110 | 70-140 | 12 | 20 | 100 | 86% |
TDB240-110S24 | 110 | 70-140 | 24 | 10 | 200 | 88% |
TDB150-300S05 | 300 | 200-400 | 05 | 30 | 50 | 82% |
TDB150-300S12 | 300 | 200-400 | 12 | 12.5 | 120 | 86% |
TDB300-300S12 | 300 | 200-400 | 12 | 25 | 120 | 85% |
TDB300-300S15 | 300 | 200-400 | 15 | 20 | 150 | 87% |
TDB200-300S24 | 300 | 200-400 | 24 | 8.33 | 200 | 88% |
TDB300-300S24 | 300 | 200-400 | 24 | 12.5 | 200 | 88% |
TDB300-300S48 | 300 | 200-400 | 48 | 6.25 | 400 | 92% |
TDB400-300S48 | 300 | 200-400 | 48 | 8.33 | 400 | 92% |
TDB150-600S05 | 600 | 400-800 | 05 | 30 | 50 | 87% |

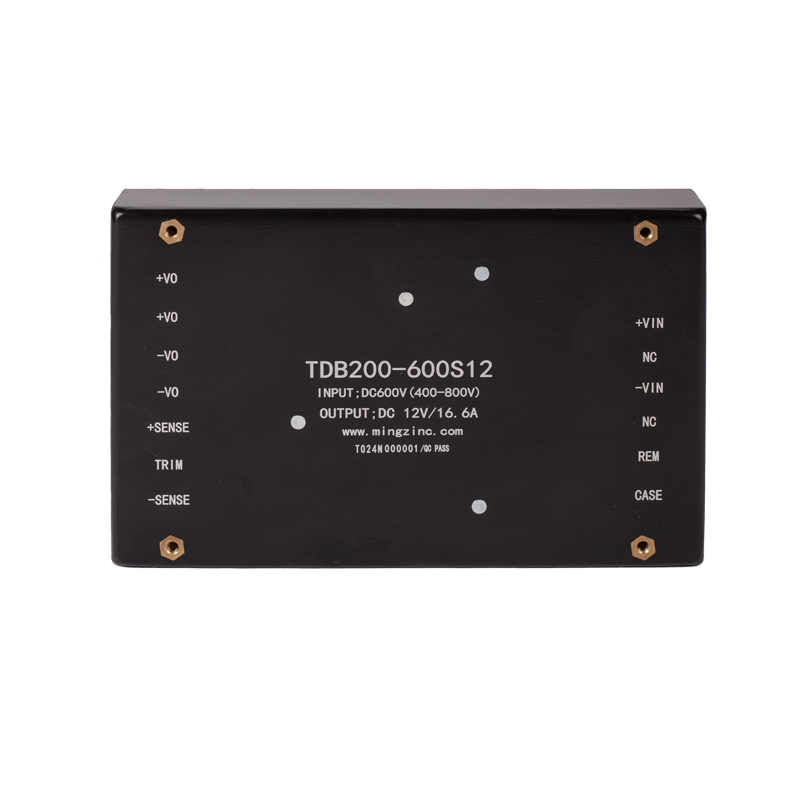

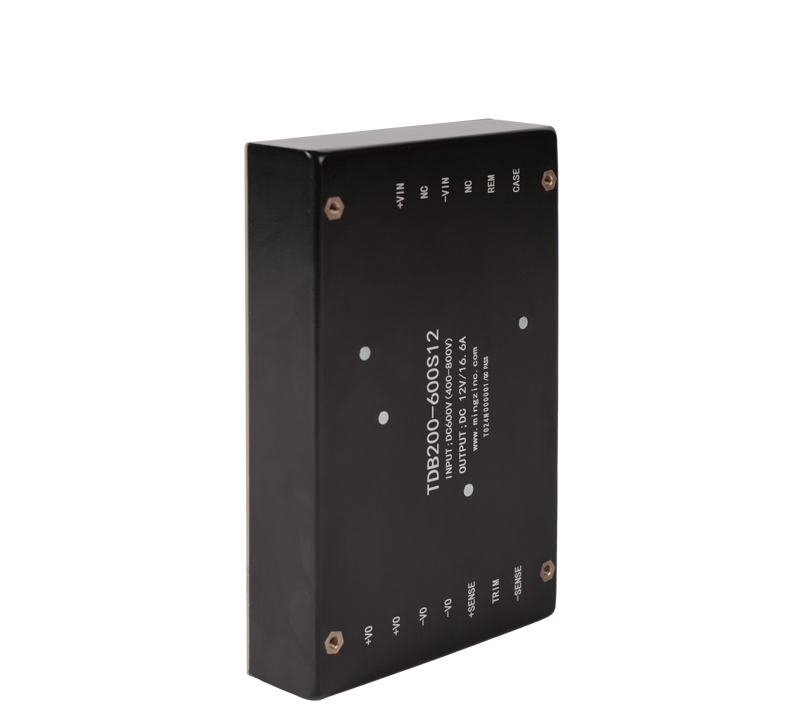

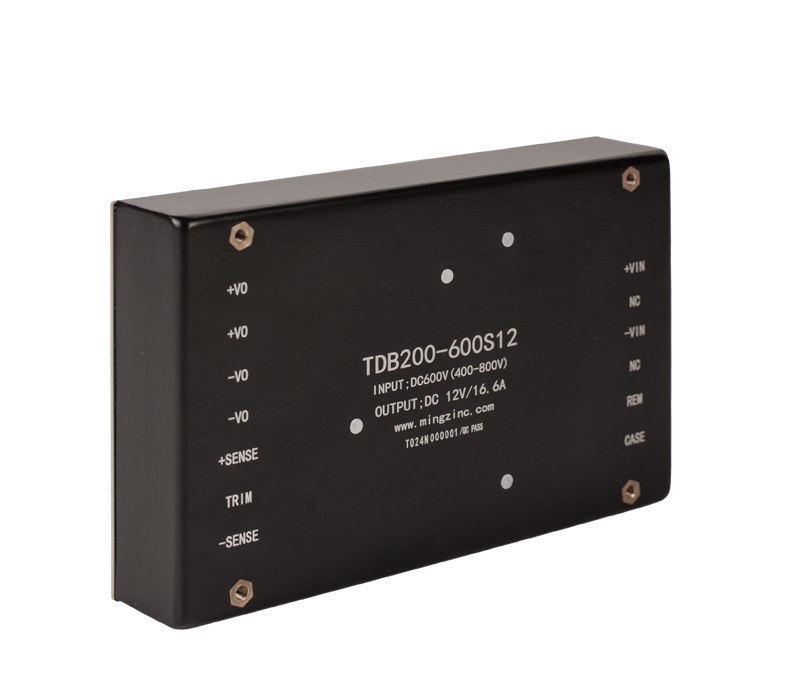

TDB200-600S12 | 600 | 400-800 | 12 | 16.7 | 120 | 89% |
TDB300-600S24 | 600 | 400-800 | 24 | 12.5 | 200 | 91% |
说明：仅例出典型型号,其它型号，请确定功率，输入电压及输出电压，*电我公司
Only typical models listed. If you need other model,please inform the power ,input voltage and output voltage,then phone us.
II. 特性FEATURES
1 | 输入电压范围宽 Wide range of input voltage |
2 | 高可靠性,长寿命设计 Design for high reliability,long lifetime |
3 | 输入欠压过压保护 Under-&over-voltage protection for output |
4 | iag满负荷效率可达92% Full load efficiency up to 92% |
5 | 快速动态响应 Fast dynamic response |
6 | 功率密度达26W/in³ UP to 26W/in³ power density |
7 | 高压输入，大功率输出 High voltage input , high output power |
8 | 功率覆盖范围广，便于升级 Wide range of power ,easy to upgrade |
输入特性INPUT CHARACTERISTIC
额定值Rated value(VDC) | 电压范围Voltage Range(VDC) |
110 VDC（额定值） | 70-140VDC |
300 VDC (额定值） | 200-400VDC |
600VDC （额定值） | 400-800VDC |
备注：反压保护<Reverse Protection> 应用时外接熔丝<Fuse outside> | |
IV. 输出特性OUTPUT CHARACTERISTIC
功率 Power | 150-400W |
输出电流Output Current | 2-30A 任选 |
输出电压Output Voltage | 5-48VDC |
电压精度 Voltage Set-point Accuracy | ±1% |
输出电压调整范围（Voltage set-point Accuracy) | ±10% |
电压调整率（主路）Line Regulation<main> | ±0.2% |
负载调整率(主路）Load Regulation<main> | ±0.4% |
温度变化率 rate of change of temperature | ±0.01%/℃ |
电流限制点 Output Current Limting | 120%（Typ) |
响应速度 response time | 400μs |
一般特性 GENERAL CHARACTERISTIC
工频频率 Switching Frequency | 160-200KHz |
绝缘电阻 Isolation resistance | 200MΩ |
MTBF | >500000 h |
隔离绝Isolation Voltage
输入-输出Input-Output | >2000VDC |
输入-外壳Input-Case | >2000VDC |
输出-外壳Output-Case | >500VDC |
环境特性Environmental Characteristics
工作壳温 Case Temperature | （工业品）Industry | -25 – +85℃ |
（军I） Military l | -40 – +85℃ | |
（军II） Military II | -55 – +85℃ | |
存储温度 Storage Temperature | （工业品） Industry | -45 – +105℃ |
（军I）Military l | -55 – +105℃ |

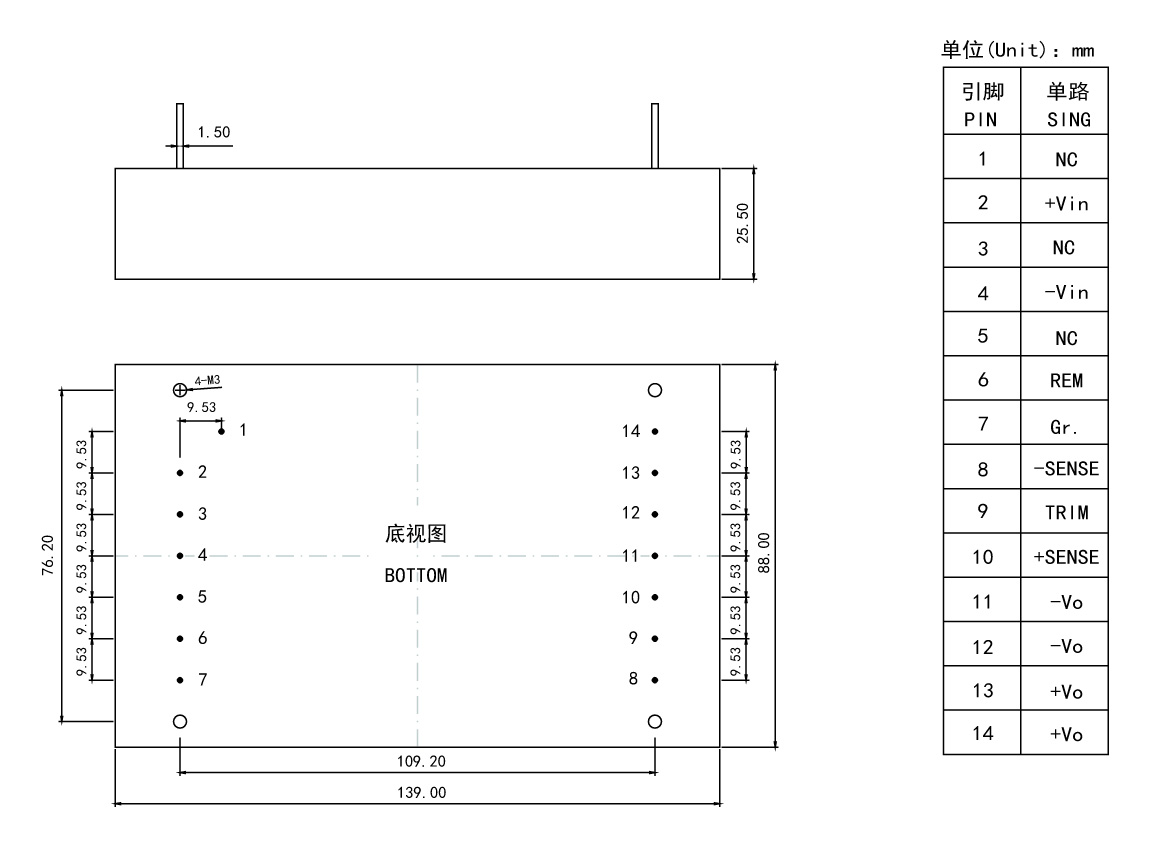

外型尺寸与引脚定义 MECHANICAL DRAWING AND PIN DEFINITION
