特性:
◆ 高低电压输入可选
◆ 2倍，4倍电压输入
◆ 输出短路保护
◆ 安装方便
◆ 散热效果好
◆ 高可靠性，长寿命设计
条件：除特殊指定外，所有参数测试条件为：室温25℃,标称输入电压，纯阻性标称负载。
输入特性：
Rated value(VDC) | Voltage Range(VDC) |
12VDC | 9-18VDC |
18VDC | 9-36VDC |
24VDC | 18-36VDC |
110VDC | 66-154VDC |
600VDC | 400-800VDC |
输出特性：
功率Power | 150-400W |
输出电流Output Current | 5-50A |
输出电压Output Voltage | 5-110VDC |
输出电压调整范围 Output voltage Range | ±10% |
电压精度Voltage Set-point Accuracy | ±2% |
电压调整率（主路）Line Regulation<main> | ±0.5% |
负载调整率（主路）Load Regulation<main> | ±0.5% |
电流限制点Output Current Limiting | 120%(Typ) |
一般特性：
工作频率 Switching Frequency | 100-200KHz |
绝缘电阻 Isolation resistance | 200MΩ |
保护特性：
1 | 输入欠压保护Input under voltage protection |
2 | 输入过压保护Input over voltage protection |
3 | 过温保护 Over temperature protection |
4 | 输出过流保护Output over current protection |
5 | 输出短路保护Output short circuit protection |
隔离电压值Isolation Voltage
输入-输出Input-Output | >1500VDC |
输入-外壳Input-Case | >1050VDC |
输出-外壳Output-Case | >500VDC |
环境特性Environmental Characteristics
工作壳温 Case Temperature | Industry | -25 – +85℃ |
Military l | -40 – +85℃ | |
Military II | -55 – +85℃ | |
存储温度 Storage Temperature | Industry | -45 – +105℃ |
Military l | -55 – +105℃ |
型号：
单路Single Channels Ouput
型号Models | 输入电压(VDC) Input voltage
| 输入电压范围（VDC） Input voltage Range | 输出电压（VDC) Output voltage | 输出电流Output current(A) | 纹波PK-PK（MV) Ripple and noise | 效率(Typ)Efficiency (Typ) |
MDJ200-12S12 | 12VDC | 9-18VDC | 12VDC | 16.67A | 120 | 87% |
MDJ150-18S24 | 18VDC | 9-36VDC | 24VDC | 6.25A | 200 | 86% |
MDJ300-12S24 | 12VDC | 9-18VDC | 24VDC | 12.5A | 200 | 86% |
MDJ400-24S12 | 24VDC | 18-36VDC | 12VDC | 33.3A | 120 | 88% |
MDJ330-24S110 | 24VDC | 18-36VDC | 110VDC | 3A | 600 | 88% |
MDJ400-110S12 | 110VDC | 66-154VDC | 12VDC | 33.3A | 120 | 88% |
MDJ400-110S24 | 110VDC | 66-154VDC | 24VDC | 16.7A | 200 | 89% |
MDJ400-110S48 | 110VDC | 66-154VDC | 48VDC | 8.3A | 300 | 90% |
MDJ300-600S24 | 600VDC | 400-800VDC | 24VDC | 12.5A | 200 | 90% |

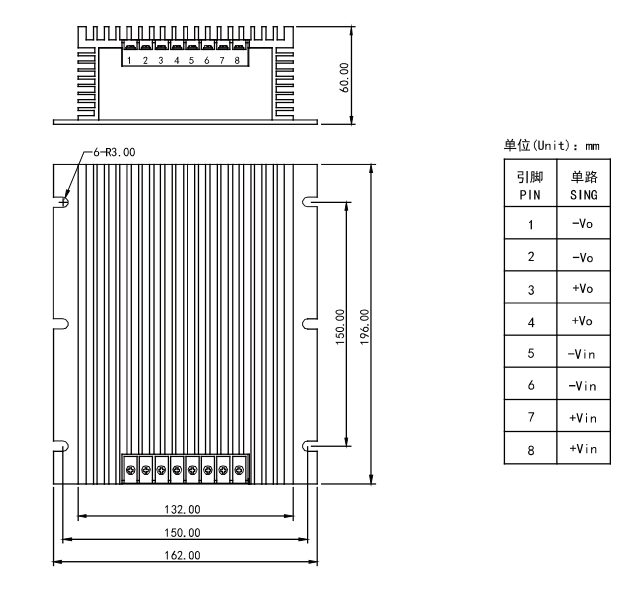

外型尺寸与引脚定义：
